Gas Mixing

Gas Mixture Buffer Tank

A gas mixture buffer tank accumulates prepared mixture after the mixing unit and smooths delivery to production lines. Selection is based on volume, pressure rating, connection layout, demand pattern, and integration with the mixer or cabinet.

Quick specification summary

Variants
600 L and 2000 L options
Media
Prepared shielding and process gas mixtures
Format
Buffer tank for ready gas mixture
Use
Demand smoothing before production lines

Configuration range

600 L and 2000 L receiver options can be compared by volume, pressure, dimensions, and system role.

Key selection fields

Compare receiver volume, pressure rating, dimensions, and expected mixture demand pattern.

Supply support

The receiver can be supplied with connection hardware, documents, export packing, and shipment coordination.

Variants 600 L and 2000 L options
Media Prepared shielding and process gas mixtures
Format Buffer tank for ready gas mixture
Use Demand smoothing before production lines

Overview

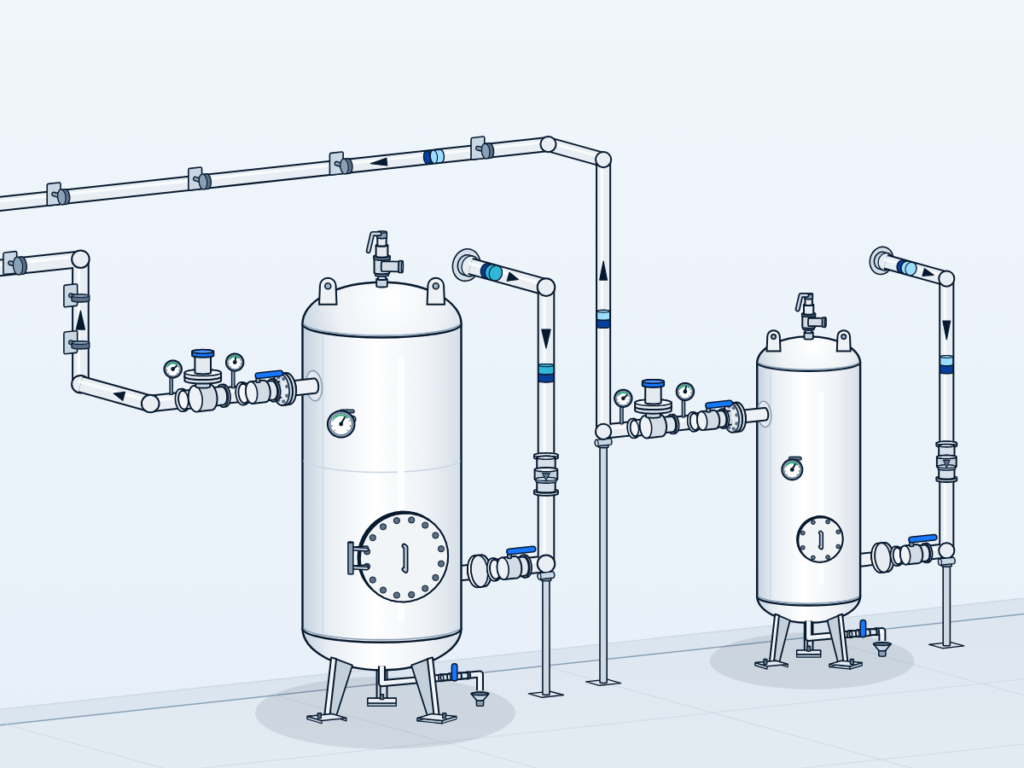

Buffer tanks for prepared gas mixtures, installed after the mixer or cabinet to stabilize line pressure and flow.

The buffer tank is not the mixer itself. Its role is to hold ready mixture after the dosing unit, absorb short demand swings, and make the supply line easier to regulate during production.

The main checks are receiver volume, working pressure, dimensions, valve and gauge package, inlet and outlet connection layout, and how many consumption points the prepared mixture must support.

Also called a gas buffer tank, mixed-gas receiver, or surge tank, it stabilizes prepared shielding and process-gas mixtures for welding, food packaging, and production lines. Cryofortune supplies gas mixture buffer tanks worldwide in a range of volumes and pressures, with export documentation.
